Model：
|
NO |
Product attributes |
| |
|
1 |
Rated working pressure |
PN |
1.0-1.6Mpa |
|
2 |
Test pressure |
Shell |
1.5-2.4Mpa |
|
Seal |
1.1-1.76Mpa | ||
|
3 |
working temperature |
T |
0-100℃ |
|
4 |
Applicable media |
Freshwater, sea water, | |
|
NO |
Name |
Texture of material |
NO |
Name |
Texture of material |
|
1 |
Actuator |
Aluminum alloy shell |
8 |
Upper valve shaft |
304, 316, 416 stainless steel, 45 # carbon steel |
|
2 |
Connecting bolt |
45#、Stainless Steel |
9 |
Seat rubber |
EPDM、NBR |
|
3 |
O-ring |
NBR |
10 |
Valve plate |
QT450 nickel plating, QT450 nylon coating, aluminum bronze, 304, 316, 316L, 2507, 1.4469, 1.4529 |
|
4 |
Anti-backlash clip spring |
50#Manganese Steel |
11 |
Backstop rod |
UPVC、45# |
|
5 |
Backstop ring |
45#Galvanizing |
12 |
Lower Valve Shaft |
304, 316, 416 stainless steel, 45 # carbon steel |
|
6 |
Round gasket |
45#Galvanizing |
13 |
valve body |
HT200, QT450, Stainless Steel, Cast Steel |
|
7 |
Lubricating sleeve |
Teflon |
|

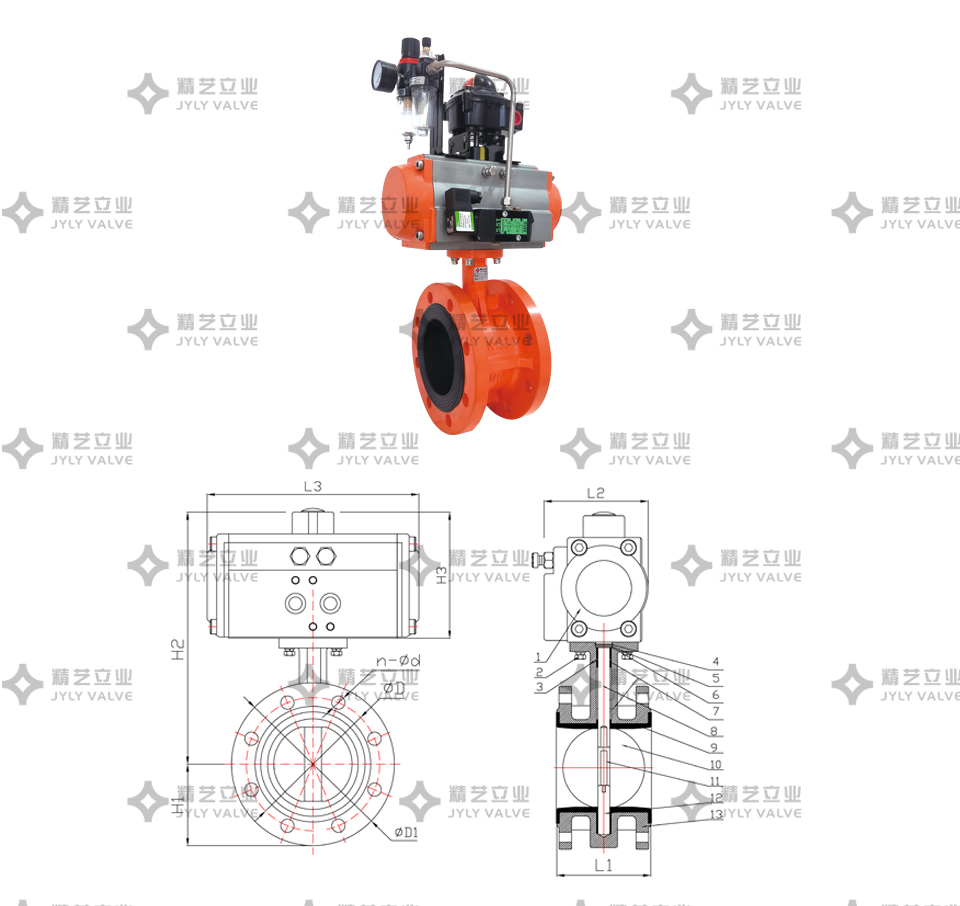

DN |
ΦD |
ΦD1 |
n-Φd1 |
H1 |
H2 |
H3 |
L1 |
L2 |
L3 |
|
DN40 |
110.00 |
150 |
4-Φ18 |
76 |
228 |
92 |
110 |
71.5 |
147 |
|
DN50 |
125.00 |
165 |
4-Φ18 |
81 |
249.5 |
107.5 |
110 |
83 |
168 |
|
DN65 |
145.00 |
185 |
4-Φ18 |
96 |
253.5 |
107.5 |
114 |
83 |
168 |
|
DN80 |
160.00 |
200 |
4-Φ18 |
98 |
271.5 |
119.5 |
116 |
95 |
184 |
|
160.00 |
200 |
8-Φ18 | |||||||
|
DN100 |
180.00 |
220 |
8-Φ18 |
111 |
303.7 |
128.7 |
129 |
103 |
204 |
|
DN125 |
210.00 |
250 |
8-Φ18 |
128 |
317.5 |
136.5 |
142 |
108.5 |
262 |
|
DN150 |
240.00 |
285 |
8-Φ22 |
143 |
353 |
153 |
142 |
121.5 |
268 |
|
DN200 |
295.00 |
340 |
8-Φ22 |
172 |
408 |
175 |
154 |
142 |
301 |
|
295.00 |
340 |
12-Φ22 | |||||||
|
DN250 |
350.00 |
395 |
12-Φ22 |
199 |
457 |
192 |
167 |
152 |
390.00 |
|
355.00 |
405 |
12-Φ26 | |||||||
|
DN300 |
400.00 |
445 |
12-Φ22 |
231 |
515 |
217 |
180 |
174 |
458 |
|
410.00 |
460 |
12-Φ26 | |||||||
|
DN350 |
460.00 |
505 |
16-Φ22 |
253 |
586 |
260 |
192 |
206 |
525 |
|
470.00 |
520 |
16-Φ26 | |||||||
|
DN400 |
515.00 |
565 |
16-Φ26 |
266 |
652 |
285 |
218 |
226 |
532 |
|
525.00 |
580 |
16-Φ30 | |||||||
|
DN450 |
565.00 |
615 |
20-Φ26 |
299 |
727 |
319 |
224 |
260 |
602 |
|
585.00 |
640 |
20-Φ30 | |||||||
|
DN500 |
620.00 |
670 |
20-Φ26 |
327 |
790 |
356 |
231 |
294 |
722 |
|
650.00 |
715 |
20-Φ33 | |||||||
|
DN600 |
725.00 |
780 |
20-Φ30 |
385 |
886 |
380 |
270 |
336 |
760 |
|
770.00 |
840 |
20-Φ36 |
